The Dynam Labs VCU is an all-in-one EV solution designed to meet the demands of high-performance EV street and motorsport applications, with full compatibility for controlling Tesla and Cascadia Motion drive units.
Control Tesla motors and inverters without a logic board swap, with integrated battery, I/O, thermal, GPS, and logging for street and motorsport applications.
Advanced Features
β‘ Drivetrain Control Control Cascadia Motion and Tesla drive units without replacing the inverter logic board
βοΈ Advanced Torque Calibration Fine-tune drivetrain with our advanced calibration system supporting 12x12 3D torque maps for precise control
π¦Ύ Powerful Processing 520MHz CPU with real-time operating system ensuring responsive control for your EV applications
π‘ Comprehensive Connectivity 3x CAN, 2x SENT, and Ethernet interfaces for seamless integration with vehicle components
πΎ Internal Logging Store extensive data with 128GB internal logging capacity for in-depth analysis and optimization
π Battery Management System (Beta) Expert BMS integration for efficient battery management, enhancing lifespan and reliability. Currently in beta testing phase.
π‘οΈ Temperature Monitoring 4x Temperature Sensor Inputs ensuring components operate within ideal temperature ranges
π GPS Integration Seamless GPS integration providing precise location data for your vehicle
π Firmware Updates Keep your VCU up-to-date with the latest features through seamless firmware updates.
π€ Extensible Plugins Extend functionality with Lua-based plugins for custom control algorithms without modifying core firmware
β¨ Tesla Drive Unit Flashing Built-in capability to flash Tesla drive units directly through the VCU, eliminating the need for additional hardware or complex procedures
π» AWD Support Complete support for all-wheel drive configurations with multi-motor control, perfect for high-performance EV conversions and custom builds
Supported Drive Units
Tesla Front Small Drive Unit
Tesla Rear Small Drive Unit
Tesla Large Drive Unit
Tesla Model 3 Rear
Nissan Leaf ZE1 & AZEO
Cascadia CM/PM Series
Bolt Management Software
Purpose-built for Dynam Labs hardware, Bolt provides complete control over your EV conversion project with professional-grade features and modern simplicity.
Features
ποΈ Calibration Tools Fine-tune vehicle parameters with advanced calibration tools for drivetrain, I/O control, and battery systems, including powerful difference reporting and gauge output configuration
πΎ Data Logging Capture and visualize performance data with multi-channel logging for professional EV workshops, including drivetrain telemetry and battery diagnostics.
π Seamless Updates One-click firmware updates ensure your VCU always has the latest features and improvements.
π€ Extensible Plugins Create custom control algorithms and workflows with Lua-based plugins without modifying core firmware.
π GPS & Navigation Built-in GPS support for precise vehicle positioning and location-based features for advanced automotive applications
π Real-time Monitoring Comprehensive dashboard to track critical drivetrain parameters, battery telemetry with cell-level monitoring, thermal systems, and I/O states simultaneously
Wiring Harness
Simplify your Dynam Labs VCU+ setup with our 1-meter (3.3ft) fully labeled TE SUPERSEAL wiring harness pigtail. Crafted from high-quality 20 AWG pure copper wire with cross-linked polyethylene (XLPE) insulation and an integrated Ethernet port for easy PC communication. Color-coded and clearly labeled to match the Dynam Labs VCU+ pinout.
Contactors
Brand New TE EV200AAANA high-voltage contactors. These contactors feature an economizer and can handle 500A and up to 900VDC.
Get notified by email when this product is in stock.
πΊπΈ FREE Shipping within the USA πΊπΈ
DynamLabs VCU+ (Launch Edition)
The Dynam Labs VCU is an all-in-one EV solution designed to meet the demands of high-performance EV street and motorsport applications, with full compatibility for controlling Tesla and Cascadia Motion drive units.
Control Tesla motors and inverters without a logic board swap, with integrated battery, I/O, thermal, GPS, and logging for street and motorsport applications.
Advanced Features
β‘ Drivetrain Control Control Cascadia Motion and Tesla drive units without replacing the inverter logic board
βοΈ Advanced Torque Calibration Fine-tune drivetrain with our advanced calibration system supporting 12x12 3D torque maps for precise control
π¦Ύ Powerful Processing 520MHz CPU with real-time operating system ensuring responsive control for your EV applications
π‘ Comprehensive Connectivity 3x CAN, 2x SENT, and Ethernet interfaces for seamless integration with vehicle components
πΎ Internal Logging Store extensive data with 128GB internal logging capacity for in-depth analysis and optimization
π Battery Management System (Beta) Expert BMS integration for efficient battery management, enhancing lifespan and reliability. Currently in beta testing phase.
π‘οΈ Temperature Monitoring 4x Temperature Sensor Inputs ensuring components operate within ideal temperature ranges
π GPS Integration Seamless GPS integration providing precise location data for your vehicle
π Firmware Updates Keep your VCU up-to-date with the latest features through seamless firmware updates.
π€ Extensible Plugins Extend functionality with Lua-based plugins for custom control algorithms without modifying core firmware
β¨ Tesla Drive Unit Flashing Built-in capability to flash Tesla drive units directly through the VCU, eliminating the need for additional hardware or complex procedures
π» AWD Support Complete support for all-wheel drive configurations with multi-motor control, perfect for high-performance EV conversions and custom builds
Supported Drive Units
Tesla Front Small Drive Unit
Tesla Rear Small Drive Unit
Tesla Large Drive Unit
Tesla Model 3 Rear
Nissan Leaf ZE1 & AZEO
Cascadia CM/PM Series
Bolt Management Software
Purpose-built for Dynam Labs hardware, Bolt provides complete control over your EV conversion project with professional-grade features and modern simplicity.
Features
ποΈ Calibration Tools Fine-tune vehicle parameters with advanced calibration tools for drivetrain, I/O control, and battery systems, including powerful difference reporting and gauge output configuration
πΎ Data Logging Capture and visualize performance data with multi-channel logging for professional EV workshops, including drivetrain telemetry and battery diagnostics.
π Seamless Updates One-click firmware updates ensure your VCU always has the latest features and improvements.
π€ Extensible Plugins Create custom control algorithms and workflows with Lua-based plugins without modifying core firmware.
π GPS & Navigation Built-in GPS support for precise vehicle positioning and location-based features for advanced automotive applications
π Real-time Monitoring Comprehensive dashboard to track critical drivetrain parameters, battery telemetry with cell-level monitoring, thermal systems, and I/O states simultaneously
Wiring Harness
Simplify your Dynam Labs VCU+ setup with our 1-meter (3.3ft) fully labeled TE SUPERSEAL wiring harness pigtail. Crafted from high-quality 20 AWG pure copper wire with cross-linked polyethylene (XLPE) insulation and an integrated Ethernet port for easy PC communication. Color-coded and clearly labeled to match the Dynam Labs VCU+ pinout.
Contactors
Brand New TE EV200AAANA high-voltage contactors. These contactors feature an economizer and can handle 500A and up to 900VDC.

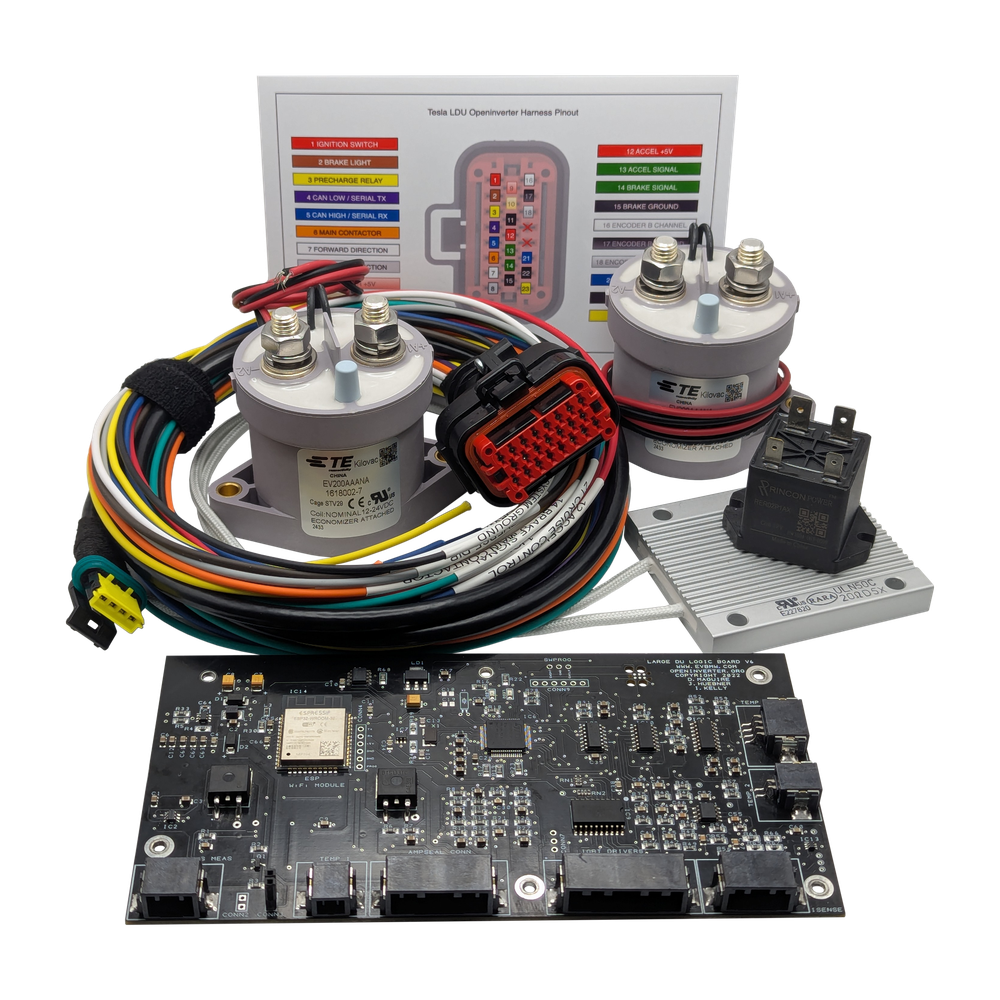

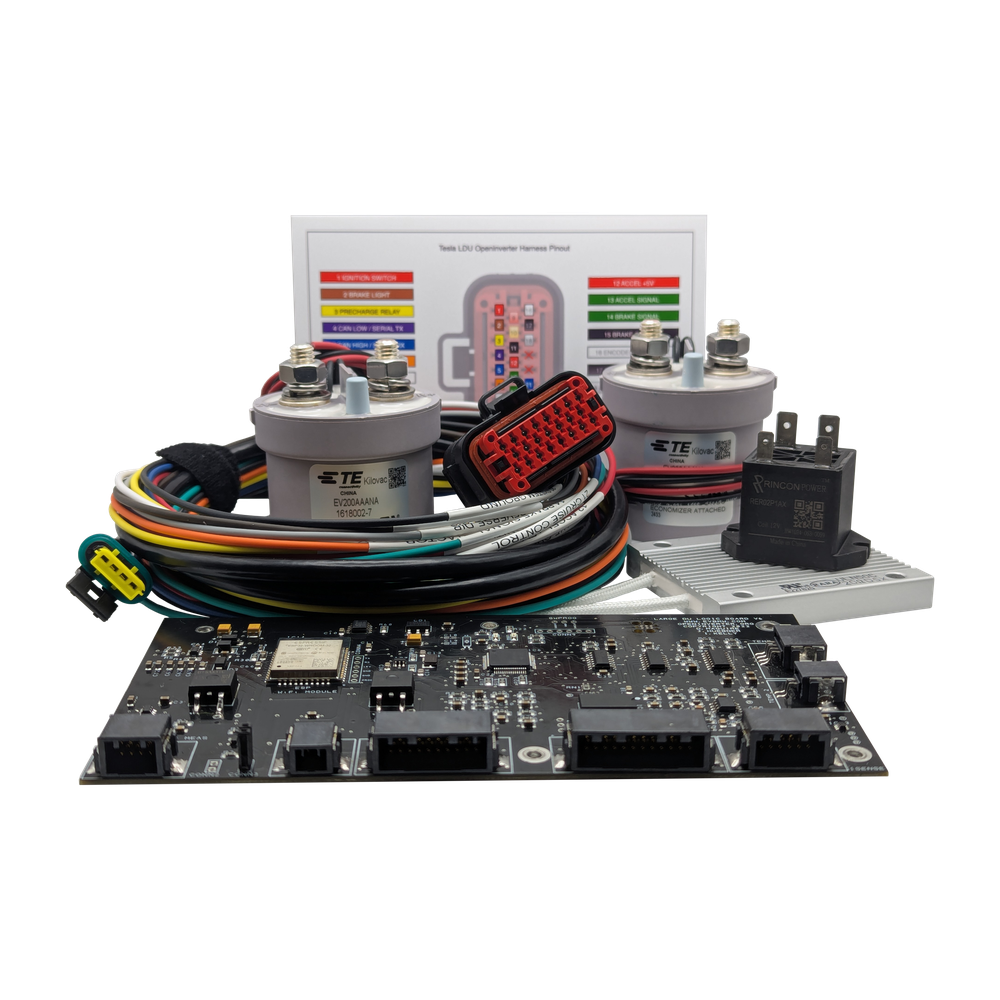

50% of all new logic board profits go directly to the original developers. By purchasing this bundle, you're not just getting a great deal, but you're also contributing to the ongoing development and innovation of the Openinverter community. Thank you for helping support the creators who make it all possible! π
All boards are verified to be working before shipping. Be sure to read the Openinverter wiki to get up-to-speed as much as possible first, but feel free to contact us for installation guidance or troubleshooting if needed. If a board is determined to have any defects or damage during shipping, we will replace it at no cost. You can also utilize the Openinverter community forums or purchase support hours via the Openinverter webshop for personalized troubleshooting specific to your project.
